Draft King®

Single Flue Stainless Steel Round Chimney Caps

BOLT-ON + SLIP-IN  |  3/4" + 5/8" MESH  |  NATURAL STAINLESS STEEL + BLACK POWDER COAT FINISHES

Available both in Bolt-On and Slip-In styles, Draft King® Single Flue Stainless Steel Round Chimney Caps are ideal for a wide range of round masonry flue sizes. Each model is also available with a black powder coat paint finish.

Bringing the Best Home to You Since 1947.™

Draft King®

Product Description

These chimney caps come complete with a 16-gauge stainless steel base, 18-gauge ¾” stainless steel mesh, and a 24-gauge stainless steel hood (⅝” mesh is available when required by local codes). The Bolt-On styles utilize slotted hex-head stainless steel bolts and a screwdriver for installation, while the Slip-In styles utilize four tension-fit braces that slide into the flue and hold the cap in place. The cap’s hood and mesh combine to keep nuisance wildlife and precipitation out of chimneys while still facilitating a proper draft.

Designed for masonry flues only. Not to be used with metal air-cooled chimney systems.

Product Guide

Bolt-On Styles Fit Multiple Round Flue Sizes

Can fit tile ranges from 7-½” to 8-½”, 9-½” to 10-½”, 11-½” to 12-½”, 13-½” to 14-½”, 15-½” to 16-½”, and 17-½” to 18-½”.

Slip-In Styles Fit Multiple Round Flue Sizes

Can fit tile ranges from 9-½” to 10-½”, 11-½” to 12-½”, 13-½” to 14-½”, 15-½” to 16-½”, and 17-½” to 18-½”.

Works Well within 25 Miles of a Saltwater Coast

Solid stainless steel construction stands up to harsh, abrasive coastal environments.

Hood with Scalloped Corners & Roll-Formed Edges

Helps facilitate proper water runoff to prevent damage from precipitation.

  • Product Features
  • Retail Specs
  • Shipping Specs
  • Installation Instructions
  • Venting Safety
Draft King® Single Flue Stainless Steel Round Chimney Caps
  • 16-Gauge Stainless Steel Base
  • 18-Gauge ¾” Expanded Stainless Steel Mesh
  • 18-Gauge ⅝” Expanded Stainless Steel Mesh Available (When Required by Local Codes)
  • 24-Gauge 100% 304 Stainless Steel Hood with Scalloped Corners and Roll-Formed Edges
  • Available in Natural Stainless Steel or with a Black Powder Coat Paint Finish
  • Slip-In Style Installs via Welded-on Braces for a Precise Tension-Fit
  • Bolt-On Style Installs with Slotted Hex-Head Stainless Steel Mounting Bolts
  • Expanded Metal Mesh Turns Inward 90° at Base and Rests on Flue Tile to Close Gaps
  • Outside Mounting Provides Greater Free Air Space for Better Draft
  • Arrests Sparks and Reduces Certain Downdrafts
  • Provides a Clean, Professional Wildlife Exclusion Solution
  • Made in the USA

STAINLESS STEEL ROUND CHIMNEY CAP SAFETY STATEMENTS

Designed for masonry flues only. Not to be used with metal air-cooled chimney systems.

Stainless steel chimney caps can be used when oil or coal is burned, or when wood or wood pellets are used as the home’s primary source of heat (e.g., a wood furnace chimney or pellet stove chimney).

Draft King® Single Flue Stainless Steel Round Chimney Caps

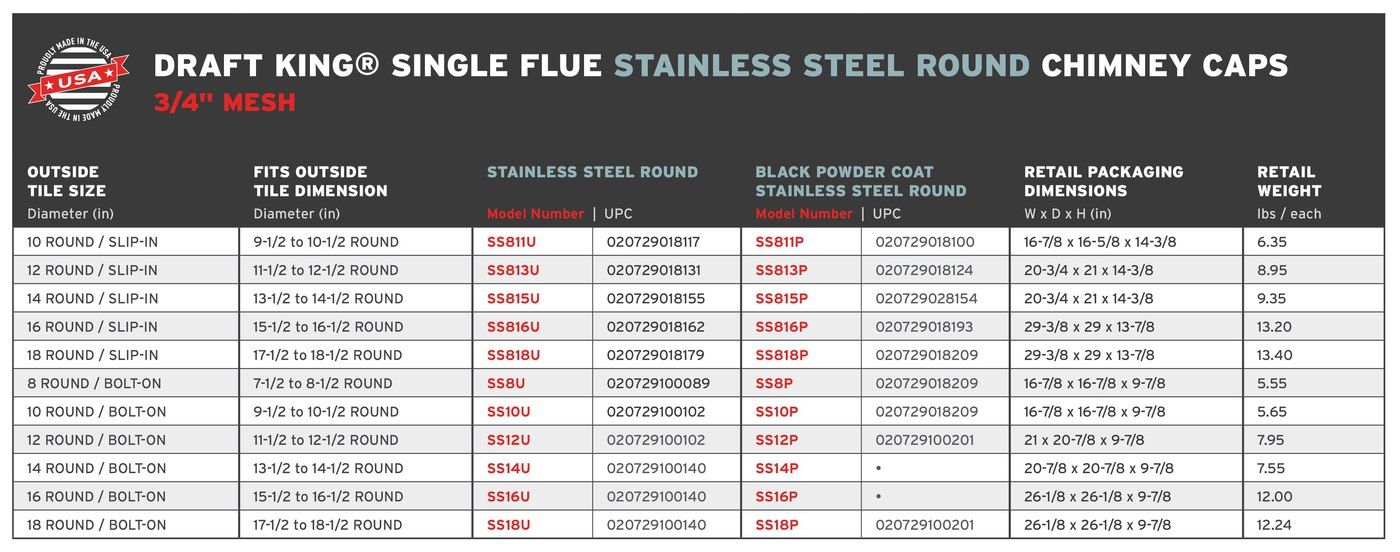

DK.RoundStainless.3-4Mesh.SingleFlue.RetailChart_2.24

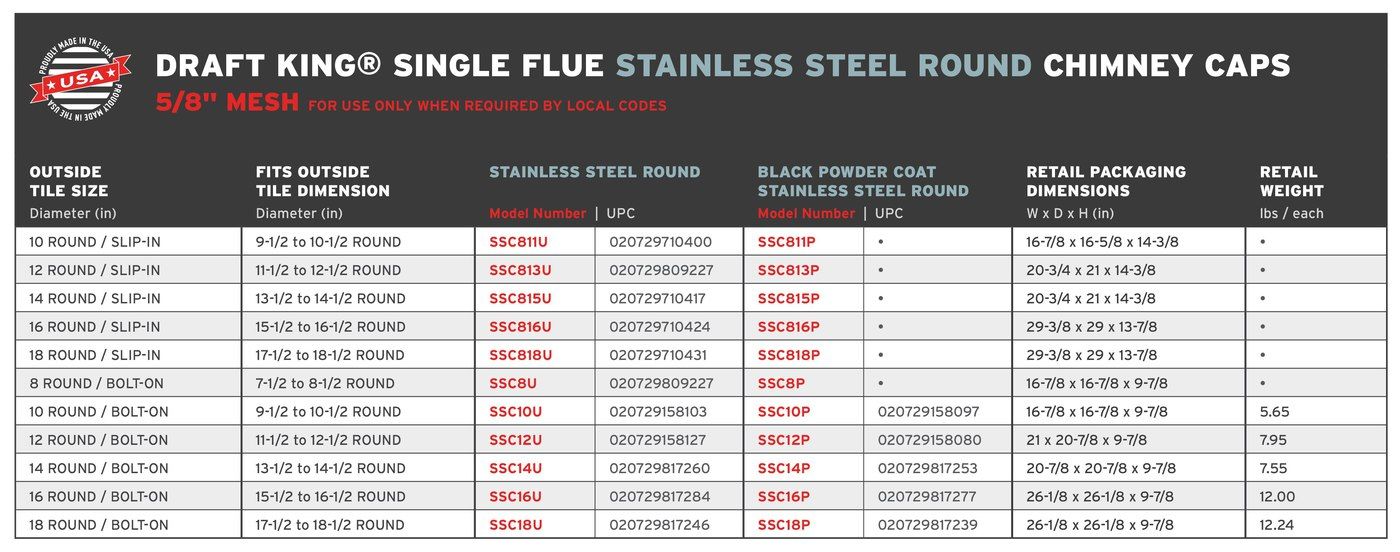

DK.RoundStainless.5-8Mesh.SingleFlue.RetailChart_2.24



Draft King® Single Flue Stainless Steel Round Chimney Caps

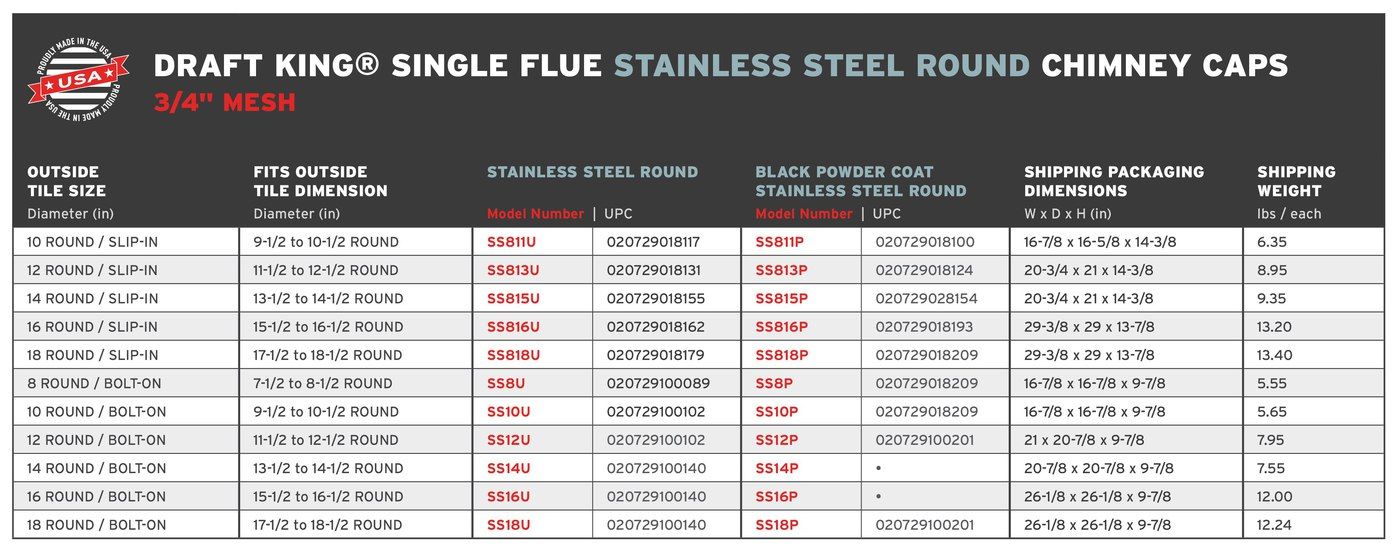

DK.RoundStainless.3-4Mesh.SingleFlue.ShippingChart_2.24

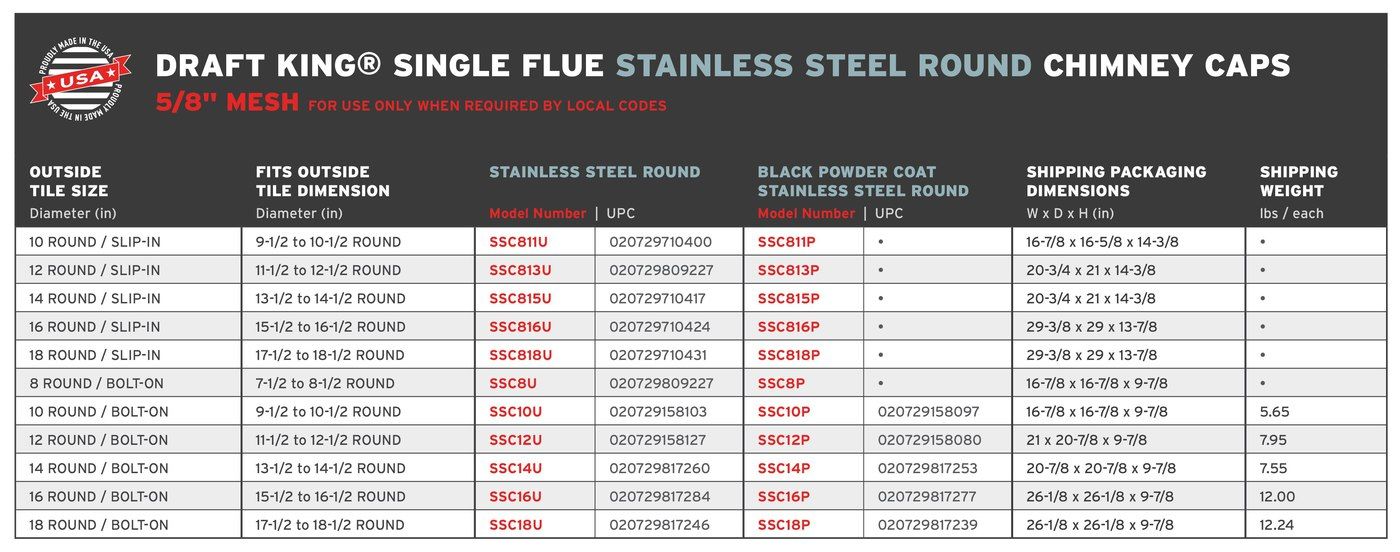

DK.RoundStainless.5-8Mesh.SingleFlue.ShippingChart_2.24



Draft King® Single Flue Stainless Steel Round Chimney Caps
Draft King® Single Flue Stainless Steel Round Chimney Caps
A HY-C COMPANY™ Warranty

Draft King®

DraftKing.Warranty_2.24

Our Draft King® brand provides safe, secure, and durable products to Improve Your Life and the Life of Your Home™. Designed and manufactured as long-lasting Home Solutions Built Better™, our warranty applies to products installed properly and used in accordance with the intended use. We reserve the right to refuse warranty coverage based upon field modifications, improper installation, and/or improper use. Our warranty applies to the original purchaser of product and is non-transferable. All warranty claims must include a copy of the original invoice showing the date purchased, seller name, and model number. Warranty coverage commences on the date of purchase. Our liability under this warranty is limited to the replacement cost of the product purchased and does not cover any costs of shipping, labor, or consequential damages related to the performance of the product.
