Single Flue Stainless Steel Chimney Liner Caps

CLAMP-ON |  3/4" + 5/8" MESH  |  NATURAL STAINLESS STEEL

Made from solid steel, these chimney caps were designed specifically for use on rigid or flexible chimney liners (though they may also be used on masonry flues). Their gear-drawn, clamp-on installation system allows them to be installed in a matter of seconds.

Bringing the Best Home to You Since 1947.™

Draft King®

Product Description

Made in the USA, Draft King® Single Flue Stainless Steel Chimney Liner Caps work well on coal, oil, and wood burning chimneys. They feature a 24-gauge stainless steel base, 18-gauge ¾” expanded stainless steel mesh, and a 100% 304 stainless steel hood. Each style comes equipped with a 1-½” stainless steel gear-drawn clamp to provide a tight, secure fit on chimney liners and masonry flues. Their solid stainless steel construction makes them ideal to withstand harsh, abrasive environments within 25 miles of saltwater coasts.

Designed for rigid or flexible stainless steel chimney liners and masonry flues only. Not to be used with metal air-cooled chimney systems.

Product Guide

Fits a Wide Range of Liner and Masonry Flues

Multiple sizes available to fit flues as small as 3-½” in diameter and as large as 14-½” in diameter.

Gear-Drawn Clamp-On Installation

Provides a tight, secure fit that’s simple and intuitive to install and keeps nuisance wildlife out!

Works Well within 25 Miles of a Saltwater Coast

Solid stainless steel construction stands up to harsh, abrasive coastal environments.

Available in ¾” and ⅝” Mesh

¾” mesh is standard (use ⅝” mesh only when required by local codes).

  • Product Features
  • Retail Specs
  • Shipping Specs
  • Venting Safety
Draft King® Single Flue Stainless Steel Chimney Liner Caps
  • 24-Gauge 100% 304 Stainless Steel Base with 18-Gauge 100% 304 Stainless Steel Braces
  • 18-Gauge ¾” Expanded 100% 304 Stainless Steel Mesh
  • 18-Gauge ⅝” Expanded 100% 304 Stainless Steel Mesh Available (Use Only When Required by Local Codes)
  • 24-Gauge 100% 304 Stainless Steel Hood with Scalloped Corners and Straight-Cut Edges
  • Installs with 1-½” 100% 304 Stainless Steel Gear-Drawn Clamp-On Band
  • Outside Mounting Provides Greater Free Air Space for Better Draft
  • Arrests Sparks and Reduces Certain Downdrafts
  • Provides a Clean, Professional Wildlife Exclusion Solution
  • Ships Completely Assembled
  • Made in the USA

STAINLESS STEEL ROUND CHIMNEY CAP SAFETY STATEMENT

Designed for rigid or flexible stainless steel chimney liners and masonry flues only. Not to be used with metal air-cooled chimney systems.

Stainless steel chimney caps can be used when oil or coal is burned, or when wood or wood pellets are used as the home’s primary source of heat (e.g., a wood furnace chimney or pellet stove chimney).

Draft King® Single Flue Stainless Steel Chimney Liner Caps

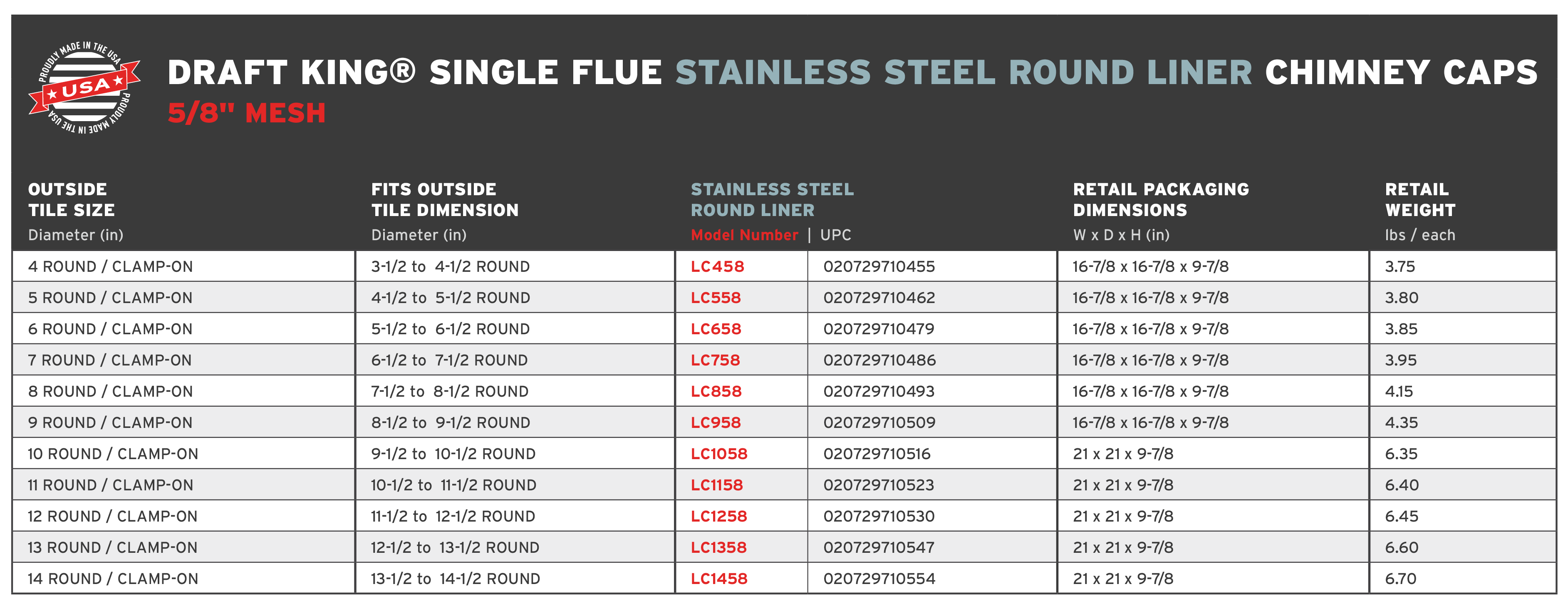

DK.RoundStainlessLiner.SingleFlue.RetailChart_2.24



Draft King® Single Flue Stainless Steel Chimney Liner Caps

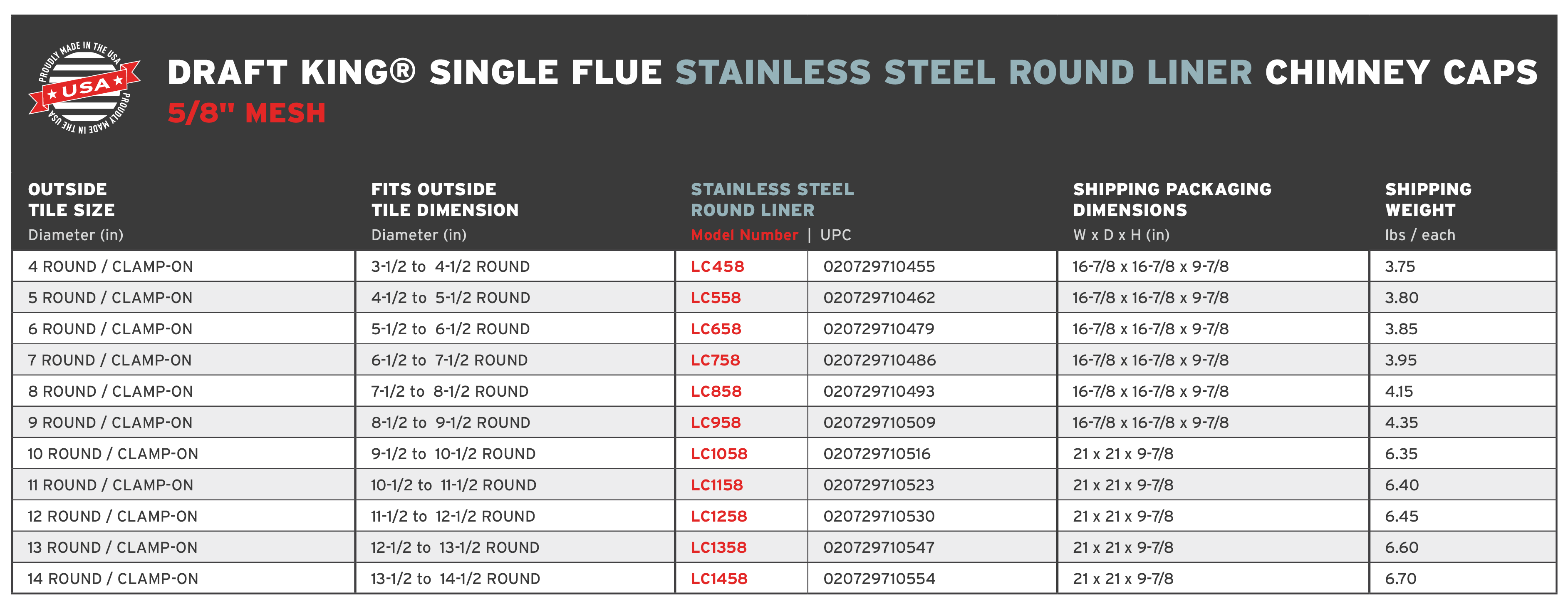

DK.RoundStainlessLiner.SingleFlue.ShippingChart_2.24



Draft King® Single Flue Stainless Steel Chimney Liner Caps
A HY-C COMPANY™ Warranty

Draft King®

DraftKing.Warranty_2.24

Our Draft King® brand provides safe, secure, and durable products to Improve Your Life and the Life of Your Home™. Designed and manufactured as long-lasting Home Solutions Built Better™, our warranty applies to products installed properly and used in accordance with the intended use. We reserve the right to refuse warranty coverage based upon field modifications, improper installation, and/or improper use. Our warranty applies to the original purchaser of product and is non-transferable. All warranty claims must include a copy of the original invoice showing the date purchased, seller name, and model number. Warranty coverage commences on the date of purchase. Our liability under this warranty is limited to the replacement cost of the product purchased and does not cover any costs of shipping, labor, or consequential damages related to the performance of the product.
